The screen stays black even though your Series X is running. The white-green light is on, the fan is spinning, but your TV says "No Signal." The console itself is alive, so the issue is almost certainly the HDMI link between the two.
Let's cut straight to the fix. The series is available in three versions, original 1TB Carbon Black (with disc, $499), 1TB Digital Edition Robot White (no disc, $449), and 2TB Galaxy Black Special Edition (with disc, $599). All three share the same HDMI path, so these steps work for any SKU.
Check the TV Input First
Grab the TV remote and cycle through the HDMI inputs. The Series X may have landed on a different port than you expect, especially if someone else used the TV recently. Don't skip this one, it's the most common reason for the black screen.
If you have an AV receiver or soundbar in the signal path, make sure it's set to the right input too. Receivers with HDMI-CEC can sometimes swap inputs on their own.
The HDMI Cable Is the Usual Suspect
The cable Microsoft includes is HDMI 2.1 and handles 4K 120Hz with VRR. If you swapped to an older cable from an Xbox One or PS4, it probably lacks the bandwidth and the TV won't lock the signal.

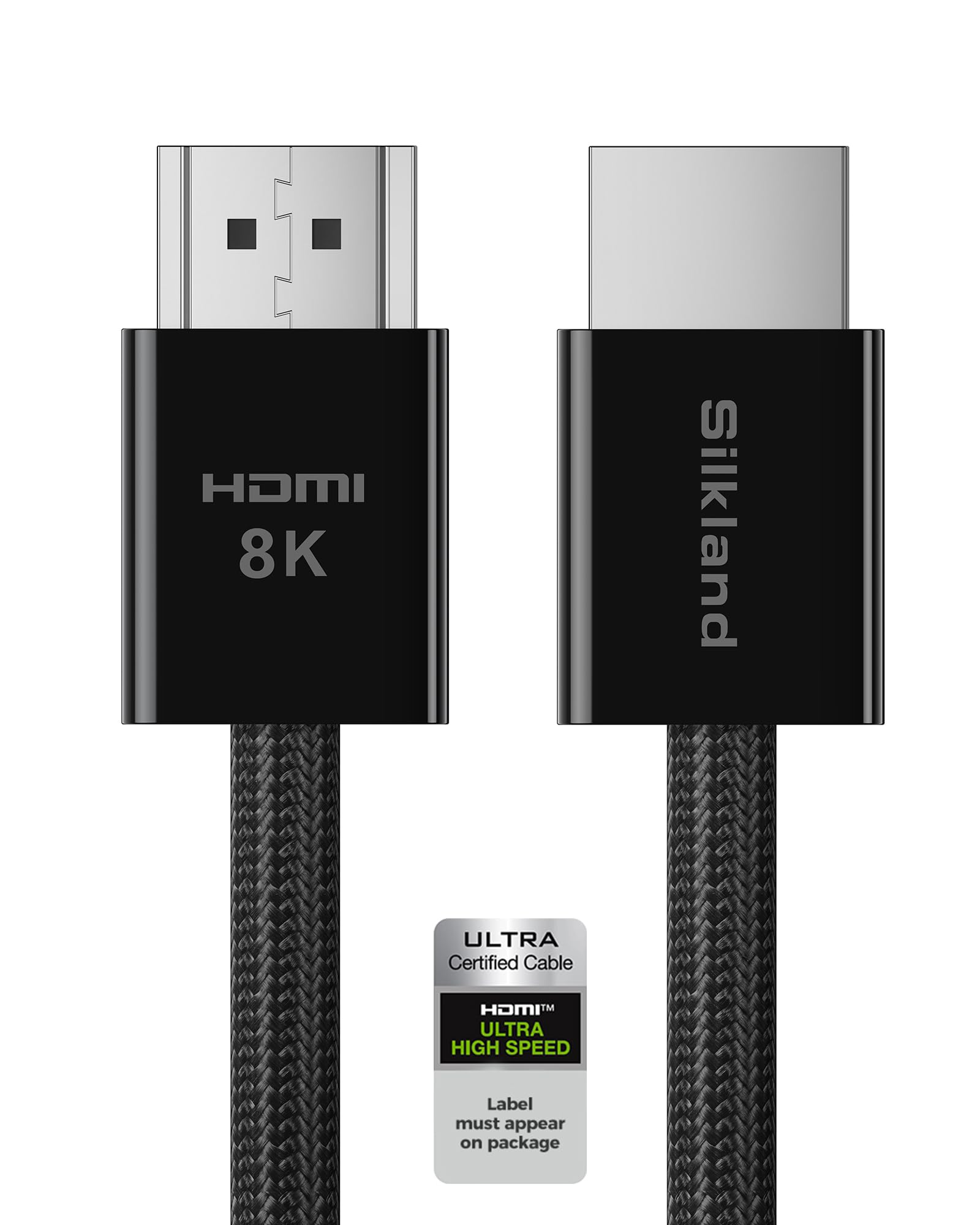

Use the original cable or any "Ultra High Speed" rated HDMI lead. If you don't have one, test the console on another TV with a known good cable to confirm it outputs any video at all.
Try a Different HDMI Port on the TV
TV ports fail more often than people think. Move the cable to another HDMI input. If you get a picture, the original port is the problem. On 4K 120Hz sets, only specific ports (labeled "4K@120" or "Game") support full HDMI 2.1 features. Plug into one of those for the best results.
If the TV has multiple ports but only one supports HDMI 2.1, using a standard port may force the console into a lower resolution and trigger handshake issues. I've seen that catch plenty of people.
Hard Power Cycle the Console
Hold the power button on the console for 10 seconds until it fully shuts off. Unplug the power cord, wait 30 seconds, plug it back in, and turn it on. This clears any stuck HDMI controller state and forces a fresh handshake when the TV next sees the signal.
This step is especially effective if the black screen started after a TV firmware update. The first boot after a hard reset takes about 30 60 seconds longer while the system renegotiates the HDMI link.
Boot Into Low-Resolution Mode
If the console is outputting 4K to a TV that can't handle it, you'll get no signal. Force a low-resolution boot by holding the power button until the console shuts off. Then hold the eject button only (not the sync button) and tap the power button once. Keep holding eject until you hear two power-up tones, about 10 seconds apart.
The console boots at 640×480, which any HDMI display can handle. Once you have a picture, navigate to Settings > General > TV & display options and set the resolution your TV actually supports. This is different from the Startup Troubleshooter, which uses power + sync + eject and lands you in a recovery menu.
Turn Off HDR Temporarily
Some older 4K TVs cannot negotiate HDR signals correctly. If you get picture in low-resolution mode but lose it when you bump back to 4K, open Settings > General > TV & display options > Video modes. Uncheck Allow HDR10 and Allow Dolby Vision. Save and let the console renegotiate.
If the signal holds, the issue is HDR-specific. Check your TV manufacturer for a firmware update to fix it permanently.
Bypass Any AV Receiver or Soundbar
If the Series X runs through a receiver, the receiver may not pass 4K 120Hz with VRR correctly. Unplug the HDMI from the receiver and run it directly to the TV. If picture comes back, the receiver is the bottleneck. You can either upgrade to an HDMI 2.1 compatible receiver or run video direct to TV and send audio separately via optical or eARC.
Update the TV Firmware
TV manufacturers push updates that fix HDMI handshake bugs, especially for HDMI 2.1 features. Check your TV's settings for a software update option. Most modern LG, Samsung, and Sony TVs check automatically if they're online, but you may need to trigger a manual check.
A firmware update takes 5 15 minutes and the TV restarts once or twice. Do it even if your TV says it's up to date, I've seen TVs miss updates for years.
Test on a Different TV
If you have another TV or monitor with HDMI, plug the Series X into it. If picture works there, your original TV is the problem (port, firmware, or compatibility). If it fails on multiple displays, the console's HDMI port may have failed.
Console HDMI port repair requires sending the unit to Microsoft or a local repair shop. Out-of-warranty repair runs about $150 200. Exhaust every other step first, the cable, the port, the resolution settings, before going that route.
Reset Display Settings via Startup Troubleshooter
The Series X has a Startup Troubleshooter built in for just this situation. Hold the power button for 10 seconds until the console shuts off. Then hold the sync (pair) button and the eject button simultaneously, then press the power button once. Keep holding sync and eject until you hear two power-up tones (about 10 15 seconds). Release the buttons.
The troubleshooter loads at 480p so any TV can display it. From there, choose Reset this Xbox > Reset and keep my games & apps. This wipes display settings and system data but leaves your games and saves intact. The reset takes about 20 minutes, then the console restarts in the correct resolution.
