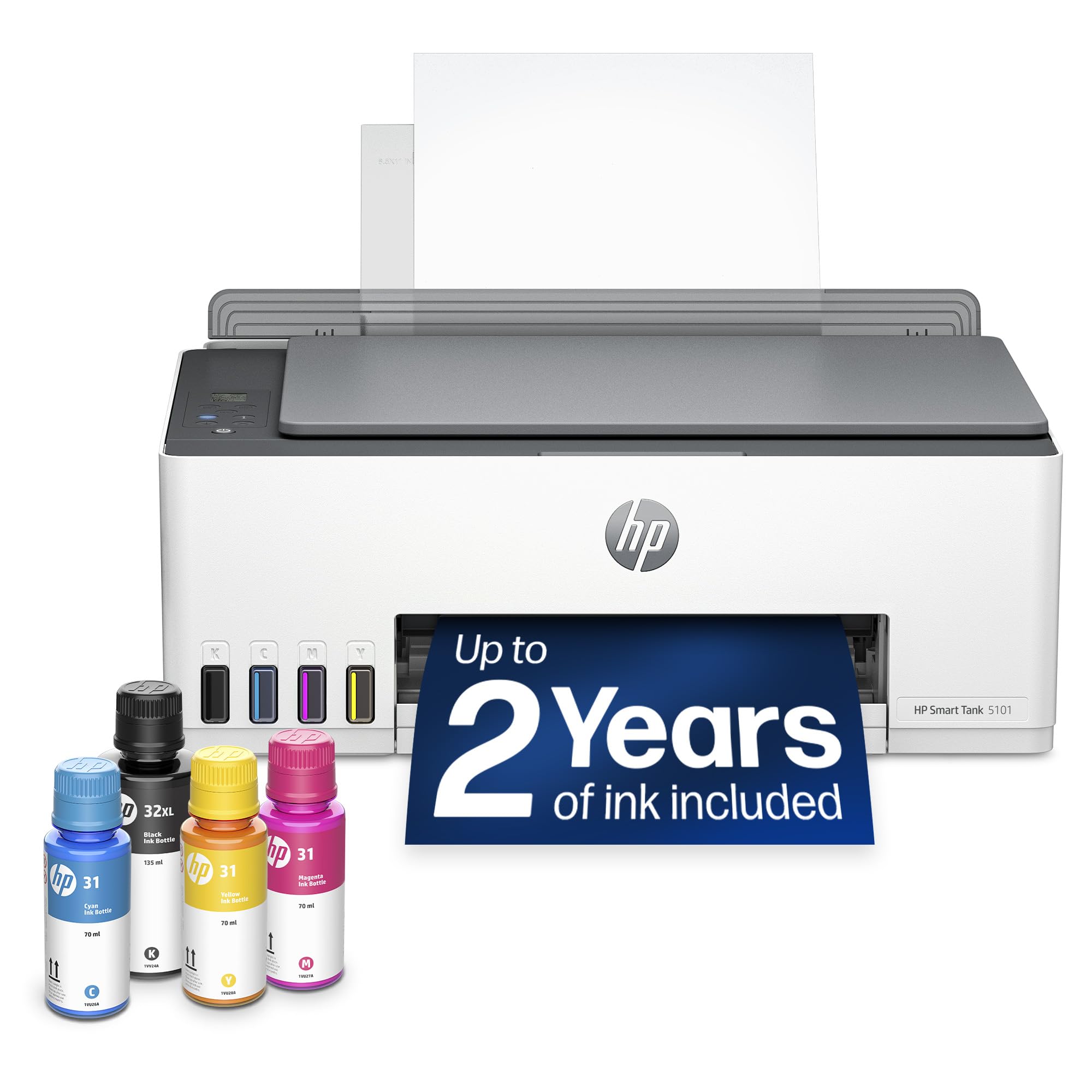

Your HP Smart Tank 5101 prints come out with streaks, blotches, or faded colors. It's a common issue with tank-based printers, and the good news is most fixes are straightforward. The Smart Tank 5101 uses HP 31/32 Original Ink Bottles, and the print head is durable but does need regular exercise.
Start with a nozzle check before diving into anything else. On the printer's control panel, tap Settings > Tools > Print Quality Report. The printer prints a pattern with black, cyan, magenta, and yellow blocks. If any block has gaps, broken lines, or missing sections, the print head needs cleaning. If the pattern is solid, the problem is elsewhere.
Why Print Quality Drops on the Smart Tank 5101
The Smart Tank 5101 was released in 2022 and uses a thermal inkjet print head with refillable ink tanks. A few things commonly cause quality issues:
- Print head clogs after periods of low use: the ink dries in the nozzles when the printer sits idle for two weeks or more.
- Air bubbles after refilling an ink tank: introducing new ink can push air into the tubing, causing intermittent streaks until the bubbles clear.
- Initial ink tank fill contamination: if colors mix during the first fill, you'll see off-color prints until the lines are flushed.
- Wrong paper type or quality setting in the driver: photo paper printed in Plain mode looks washed out; plain paper printed in High puts down too much ink and smudges.
- Low ink level in a tank: even if the software shows some ink, a visually low tank can let air into the print head.
- Using non-HP ink: third-party bottles often clog faster and produce muddy colors.
Run a Standard Print Head Cleaning
If the nozzle check showed gaps, run a cleaning cycle. On the printer, tap Settings > Tools > Clean Printhead. The cycle takes about 90 seconds and uses a small amount of ink. After it finishes, print another Print Quality Report.
If the pattern is solid now, you're done. If gaps remain, run one more standard cleaning. Most light clogs clear within two cycles.
Run a Deep Cleaning Cycle for Stubborn Clogs
If two standard cleanings don't fix it, try the deep cleaning option. Tap Settings > Tools > Clean Printhead > Advanced Cleaning. This uses more ink (about 10-15% of a full tank's worth) but clears dried ink that standard cleaning can't touch.
Don't run Advanced Cleaning more than once in a row. If it doesn't help, move to the overnight soak method instead of wasting more ink.
Soak the Print Head Overnight
When the standard and advanced cleanings fail, a manual soak can soften stubborn dried ink. Power off the printer. Open the front cover and slide the print head to the center of the carriage. Place a folded paper towel dampened with distilled water under the print head, then lower the head onto the towel. The towel should be damp, not dripping.
Leave it for 8-10 hours. Lift the head, close the cover, power the printer back on, and run one standard cleaning followed by a nozzle check. Use only distilled water, no isopropyl alcohol, vinegar, or window cleaner, which can damage the print head.
Let the Printer Rest, Then Clean Again
Sometimes the cleaning fluid needs more time to dissolve the dried ink than a single cleaning cycle allows. Run one standard cleaning, then leave the printer powered on but idle for 8-12 hours. Print a nozzle check the next morning. If gaps remain, run one more cleaning cycle. This often clears clogs that back-to-back cleanings cannot.
Align the Print Head
If text looks doubled or images are slightly blurry, the print head is misaligned. On the printer, tap Settings > Tools > Align Printhead. The printer prints a series of patterns and asks you to pick the best-looking one from each set. Alignment takes about 5 minutes and uses two sheets of paper.
This fix is particularly useful after refilling ink tanks or after moving the printer.
Match the Paper Type in the Driver
Photo paper printed with the Plain Paper setting looks washed out and oversaturated. Plain paper printed with the Photo setting smudges because too much ink is laid down. In the print dialog on Windows, click Properties or Preferences and check the Paper Type drop-down. On Mac, open the printer's options in System Settings and set Paper Type to match what's loaded.
The Smart Tank 5101 supports plain, HP photo paper, HP brochure paper, and HP premium photo paper modes. Picking the correct one usually fixes color and saturation issues immediately.
Switch to High Quality Print Mode
The default print quality on the Smart Tank 5101 is Normal. For documents or photos that need to look crisp, change it to High in the print dialog. Open print preview, click Properties, and adjust Print Quality from Normal to High. The output takes about twice as long but looks dramatically sharper.
If the issue is small text being fuzzy, this setting alone can fix it.
Check Ink Levels Visually and Refill
The HP Smart app estimates ink levels, but the most reliable check is looking at the ink tanks on the front of the printer. Open the front cover and lift the ink access door. Each tank has a fill line, if any tank is below the line, refill it from the matching HP 31 (color) or HP 32XL (black) bottle.
Low ink lets air enter the print head, which produces streaks even if the software still shows ink remaining. Refill any tank that's getting low before printing critical jobs.
Use Genuine HP 31/32 Ink Bottles Only
Generic or refilled ink causes faster clogs, muddier color, and can void the printer's warranty. The Smart Tank 5101 is designed around HP 31 (cyan, magenta, yellow) and HP 32XL (black) Original Ink Bottles. If you've been using off-brand bottles, drain those tanks (or print until empty), then refill with genuine HP bottles. Quality improves once the correct ink reaches the print head.
Print a Cleaning Page Through the HP Smart App
On Windows, open the HP Smart app (preinstalled or downloaded from the Microsoft Store). Click your printer, then Printing Preferences > Maintenance > Clean Printhead. On Mac, open HP Smart, select the printer, and navigate to Print Quality Tools > Clean Printhead. This runs the same cleaning cycle as the printer's control panel but lets you skip the touchscreen menus.
You can also print a Print Quality Report directly from the app under Tools > Print Quality Report.
