Troubleshooting Mac Wi-Fi Signal Strength: Tips and Tricks

Mac Wi-Fi signal strength can be a frustrating issue to deal with. Poor signal strength can lead to slow internet speeds, dropped connections, and other issues. Fortunately, there are several steps you can take to troubleshoot and improve your Mac's Wi-Fi signal strength.

Understanding Wi-Fi Signal Strength

When it comes to troubleshooting Wi-Fi problems on a Mac, understanding Wi-Fi signal strength is crucial. Wi-Fi signal strength is the measure of the power level of the wireless signal that your device is receiving from the Wi-Fi access point or router.

Signal strength is measured in RSSI (Received Signal Strength Indicator), which is a negative dBm (decibel milliwatt) value. The closer the RSSI value is to 0, the stronger the signal, and the farther away it is from 0, the weaker the signal.

It's important to note that RSSI is not the only factor that affects Wi-Fi signal strength. Other factors such as distance, interference, and obstructions can also have an impact on signal strength.

To check your Wi-Fi signal strength on a Mac, you can press and hold the Option key while clicking on the Wi-Fi icon in the menu bar at the top of the screen. This will display a drop-down panel that shows the signal strength, along with other network-related information.

If your Wi-Fi signal strength is weak, there are a few things you can do to try and improve it. These include:

• Move closer to the Wi-Fi access point or router
• Reduce interference from other devices
• Remove obstructions between your device and the Wi-Fi access point or router

In some cases, you may need to upgrade your Wi-Fi hardware to improve signal strength. This could involve upgrading your router, adding a Wi-Fi extender, or upgrading your Mac's Wi-Fi card.

Assessing Your Network

Before you start troubleshooting your Mac's Wi-Fi signal strength, it's important to assess your network and gather some information about your Wi-Fi connection. This will help you determine the cause of any issues you may be experiencing and provide a starting point for troubleshooting.

Check Your Network Settings

The first step is to check your network settings on your Mac. Go to the Apple menu, select "System Preferences," and then click on "Network." Here, you can see the status of your Wi-Fi connection, including the signal strength, IP address, and more.

Test Your Internet Connection

Next, test your internet connection to see if the issue is with your network or your internet service provider (ISP). You can do this by opening a web browser and trying to load a webpage. If the page doesn't load, try resetting your router and modem, or contact your ISP for assistance.

Check Your Router

If your internet connection is working properly, but you're still experiencing issues with your Wi-Fi signal strength, it's time to check your router. Make sure it's properly connected to your modem and that it's positioned in a central location in your home or office. You may also want to try updating your router's firmware.

Analyze Your Wi-Fi Network

Finally, use the Wireless Diagnostics tool on your Mac to analyze your Wi-Fi network. This tool can help you identify any issues with your wireless connection, including interference from other devices, channel conflicts, and more. To access the tool, hold down the Option key and click on the Wi-Fi icon in the menu bar, then select "Open Wireless Diagnostics."

By assessing your network and gathering information about your Wi-Fi connection, you can determine the cause of any issues you may be experiencing and take steps to improve your Wi-Fi signal strength.

Evaluating Your Mac's Wi-Fi

When troubleshooting Wi-Fi signal strength issues on your Mac, it's important to know how to evaluate your Wi-Fi connection. Here are some steps you can take to evaluate your Mac's Wi-Fi:

Step 1: Check Your Wi-Fi Icon

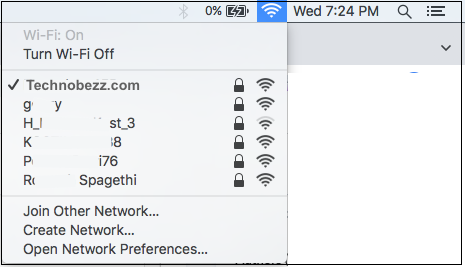

The Wi-Fi icon in your menu bar can give you some basic information about your Wi-Fi connection. If the Wi-Fi icon is solid black, this means that your Mac is connected to a Wi-Fi network. If the icon is grayed out, this means that your Mac is not connected to a Wi-Fi network.

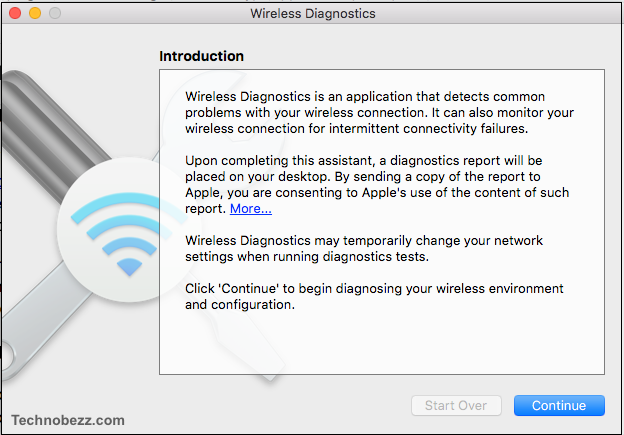

Step 2: Use Wireless Diagnostics

Wireless Diagnostics is a built-in tool on your Mac that can help you diagnose and troubleshoot Wi-Fi issues. To access Wireless Diagnostics, press and hold the Option key and click the Wi-Fi icon in the menu bar. Then, choose "Open Wireless Diagnostics" from the dropdown menu.

Once you have opened Wireless Diagnostics, follow the on-screen instructions to analyze your network connection. After the analysis is complete, click the "Info" button in the Summary pane to learn more about each item in the list.

Step 3: Check Your Wi-Fi Settings

You can check your Wi-Fi settings to see if there are any issues with your Wi-Fi connection. To do this, go to "System Preferences" on your Mac and click "Network". From there, you can see the status of your Wi-Fi connection, as well as any other network services you are using, such as Ethernet or Bluetooth.

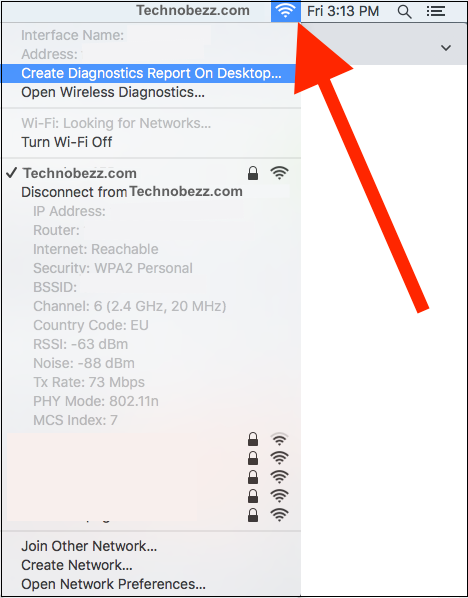

Step 4: Check Your Wi-Fi Signal Strength

Your Wi-Fi signal strength can have a big impact on your Wi-Fi connection. To check your Wi-Fi signal strength, click on the Wi-Fi icon in the menu bar while holding down the Option key. This will display a menu with additional information about your Wi-Fi connection, including your signal strength.

In general, for the signal measurement, you want to see values of -10 to -70 dBm (decibel-milliwatts); for noise, -80 to -100 dBm. As the levels of the signal and of the noise get closer to one another, the quality of the connection decreases.

By following these steps, you can evaluate your Mac's Wi-Fi and troubleshoot any signal strength issues you may be experiencing.

Using Wireless

Identifying Interference and Obstacles

When troubleshooting Wi-Fi signal strength on a Mac, it's important to identify any potential sources of interference or obstacles that may be affecting your connection. Here are some common factors to consider:

Wi-Fi Channel

Wi-Fi networks operate on different channels, and if too many networks are using the same channel in close proximity, it can cause interference and reduce signal strength. You can use a tool like Wi-Fi Scanner to see which channels are being used in your area, and switch to a less crowded channel if necessary.

Interference

Interference from other electronic devices can also affect Wi-Fi signal strength. Devices like cordless phones, microwaves, and Bluetooth devices can all cause interference. Try moving your Mac and Wi-Fi router away from these devices, or turning them off temporarily to see if it improves signal strength.

Walls and Other Obstacles

Walls and other barriers can also weaken Wi-Fi signals. Thick walls, metal objects, and even water can all reduce signal strength. Try moving your Mac and Wi-Fi router to a more open location, or using a Wi-Fi range extender to boost signal strength.

2.4GHz vs 5GHz Connection

If your Mac and Wi-Fi router support both 2.4GHz and 5GHz connections, try switching to the 5GHz connection. This frequency band is less crowded and can provide faster speeds and better signal strength.

Noise

Noise can also affect Wi-Fi signal strength. You can use a tool like WiFi Explorer to monitor noise levels and identify potential sources of interference.

By identifying and addressing potential sources of interference and obstacles, you can improve Wi-Fi signal strength on your Mac and enjoy a more reliable connection.

Improving Wi-Fi Signal Strength

If you are experiencing slow internet speeds or frequent disconnections on your Mac, it might be due to a weak Wi-Fi signal. Here are some tips to improve Wi-Fi signal strength on your Mac:

1. Test your Wi-Fi speed

Before making any adjustments, test your Wi-Fi speed to establish a baseline. This will help you determine if your adjustments are making a difference. You can use online speed test tools or download a speed test app from the App Store.

2. Optimize your Wi-Fi network

The position of your Wi-Fi router can significantly affect the quality of your Wi-Fi signal. Place your router in a central location, away from walls, furniture, and other obstructions. Also, ensure that your router is not placed near other electronics or appliances that might interfere with the signal.

3. Adjust your Wi-Fi settings

You can adjust your Wi-Fi settings to improve signal strength. Here are some recommended settings:

• Switch to a 5GHz band: If your router supports it, switch to a 5GHz band for faster speeds and less interference.
• Change the channel: If your Wi-Fi signal is weak due to interference from other Wi-Fi networks, change the channel to a less crowded one.
• Enable QoS: Quality of Service (QoS) prioritizes bandwidth for important tasks like video streaming, gaming, or VoIP calls.

4. Fix hardware issues

If your Wi-Fi signal is still weak after optimizing your network and adjusting your settings, there might be hardware issues. Try the following:

• Reset your router: Sometimes, resetting your router can fix connectivity issues.
• Update your router firmware: Check your router manufacturer's website for firmware updates that might improve performance.
• Replace your router: If your router is old or outdated, consider upgrading to a newer model that supports faster speeds and better coverage.

By following these recommendations, you should be able to improve your Mac's Wi-Fi signal strength and enjoy faster internet speeds and more stable connections.

Additional Tools for Troubleshooting

In addition to the Wireless Diagnostics tool, there are several other tools available for troubleshooting Mac Wi-Fi signal strength. Here are a few of the most useful ones:

Info Tab

The Info tab in Wireless Diagnostics provides detailed information about the current Wi-Fi network, including the signal strength, noise level, and channel. It also displays information about nearby Wi-Fi networks, which can be useful for identifying sources of interference.

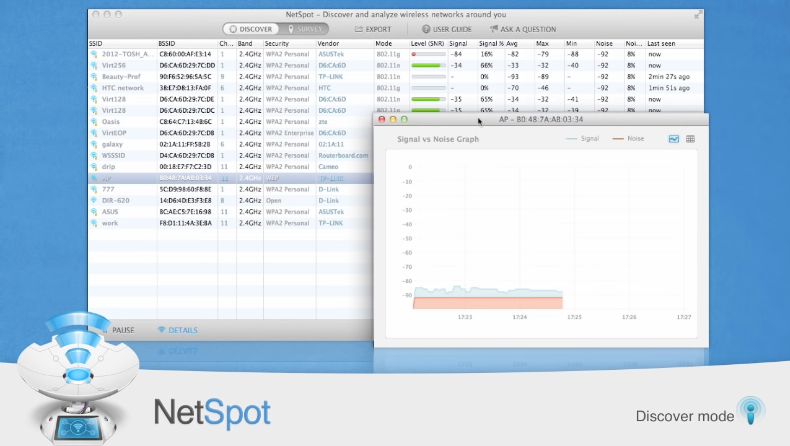

NetSpot

NetSpot is a third-party app that provides advanced Wi-Fi analysis and troubleshooting tools. It includes a visual Wi-Fi map, which shows the signal strength and coverage of each access point in your network. NetSpot also includes a site survey tool, which can be used to identify dead zones and areas with poor signal strength.

Menu Bar

The Mac menu bar includes a Wi-Fi icon, which provides quick access to basic information about the current Wi-Fi network. Clicking on the icon displays a list of available Wi-Fi networks, as well as the signal strength of each one. This can be useful for identifying nearby Wi-Fi networks that may be interfering with your own network.

Scan Tool

The Scan tool in Wireless Diagnostics can be used to perform a detailed scan of the Wi-Fi network. This tool captures packets of data sent over the wireless network, which can be used to diagnose problems with the network. The Scan tool also provides information about the signal strength and noise level of each access point in the network.

Packet Capture

Packet capture is a feature in Wireless Diagnostics that allows you to capture and analyze packets of data sent over the Wi-Fi network. This can be useful for diagnosing problems with the network, such as dropped packets or slow data transfer speeds. Packet capture can also be used to identify sources of interference on the network.

Overall, these additional tools can be extremely useful for troubleshooting Wi-Fi signal strength on a Mac. By using these tools in combination with Wireless Diagnostics, you can gain a better understanding of your Wi-Fi network and identify and resolve any issues that may be affecting your signal strength.

When to Contact Your ISP

If you have tried all the troubleshooting steps and still experience poor Wi-Fi signal strength, it may be time to contact your ISP. Here are some situations in which you should contact your ISP:

• You have ruled out all other possible causes: If you have tried all the troubleshooting steps and still experience poor Wi-Fi signal strength, it is likely that the problem is with your ISP. Contacting them will help you determine if there are any issues with your service that need to be addressed.

• You are experiencing slow internet speeds: Slow internet speeds can be caused by a variety of factors, including a weak Wi-Fi signal. If you have ruled out all other possible causes, contact your ISP to see if there are any issues with your service that need to be addressed.

• You are experiencing frequent disconnects: If your Wi-Fi connection is frequently dropping, it could be due to issues with your ISP. Contact them to see if there are any issues with your service that need to be addressed.

When you contact your ISP, be sure to provide them with as much information as possible about the issue you are experiencing. This will help them diagnose the problem more quickly and accurately. You should also be prepared to provide them with your account information and any other relevant details.

If you are not sure whether to contact your ISP or your network administrator, start by contacting your ISP. They will be able to tell you whether the issue is with your service or with your network. If the issue is with your network, they may be able to provide you with some guidance on what steps to take next.

Overall, contacting your ISP should be a last resort after you have ruled out all other possible causes. If you do need to contact them, be confident, knowledgeable, and clear in your communication. Remember that they are there to help you and will do their best to resolve any issues you are experiencing with your Wi-Fi signal strength.

Conclusion

In conclusion, troubleshooting Mac Wi-Fi signal strength is essential to ensure a reliable and high-performance connection. By following the methods outlined in this article, you can improve your Wi-Fi signal and avoid connection issues.
